DM-LSH-M

The DM-LSH-M is an advanced, shirring machine for sausage casings with automatic packaging in net. It features a one-pipe system that eliminates the need for pipe rotation, resulting in shorter cycle times and increased production capacity.

  • One pipe system
    • There is no rotating of the pipe
    • Shorter cycle time, higher production capacity
    • Very long lifetime of the pipe
    • Lower price of pipe

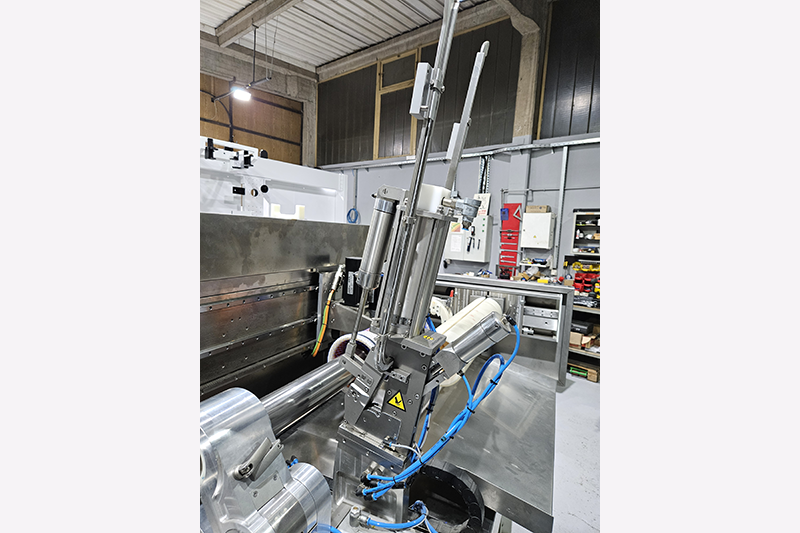

  • Axial (screw) shirring head

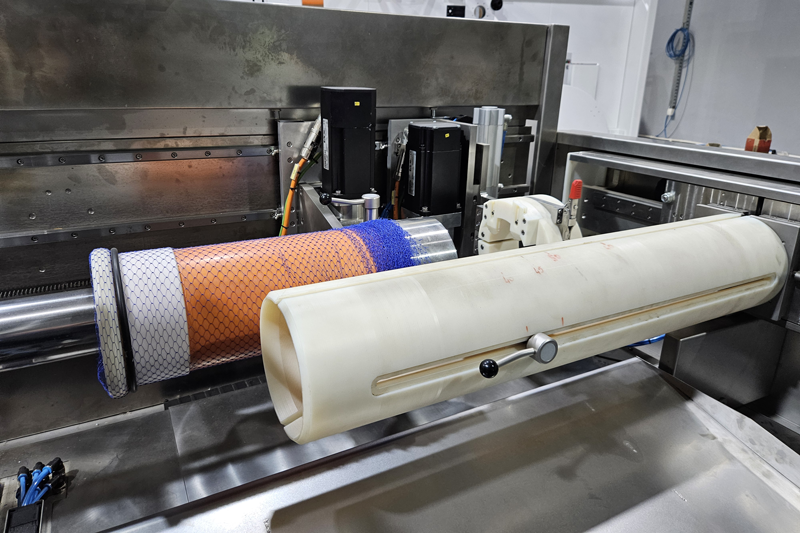

  • Automatic net packaging
  • Double loop insert system
  • Inside spraying – RTU
  • Precise control of outside spraying
  • Short SetUp time (changing shirring pipe, shirring head and tool set)
  • There are all servo motors
Machine Specification
Max Speed 300 m/min
Mechanical machine speed 120 m/min
Production capacity up to 35,000 m/8h
Reel diameter on unwinder max 600 mm
Reel weight on unwinder max 60 kg
Shirring
Shirring casings caliber min 32 mm
Shirring casings caliber max 120 mm
Shirred stick length max 800 mm
Shrring pipe diameter min 20 mm
Shrring pipe diameter max 80 mm
Types of Sausage Casings
PA ✓
Fibrous ✓
Collagen ✓
Cellulose ✓
Dimensions
Length 7.5 m
Width 1.5 m
Height 1.5 m
Weight 4 t
