DM-CIPress-HP

DM-CIPress-HP is a high-performance flexographic printing machine, specifically designed for printing sausage casings. This machine utilizes a central impression cylinder, gearless technology and motorized positioning, enabling the highest printing quality and production capacity.

  • High Performance Printing Press for Sausage Casings
  • Central Impression Cylinder
  • Gearless Technology
  • Srapper for edge to edge printing
  • Cast iron machine frame, 100 mm thickness
  • 5 sections of tension control with servo motors
  • Printing and anilox sleeves
  • Torque servo motor on the CI cylinder. There is no belt and gearbox
  • Direct servo motor coupling on the printing cylinder. There is no servo gearbox

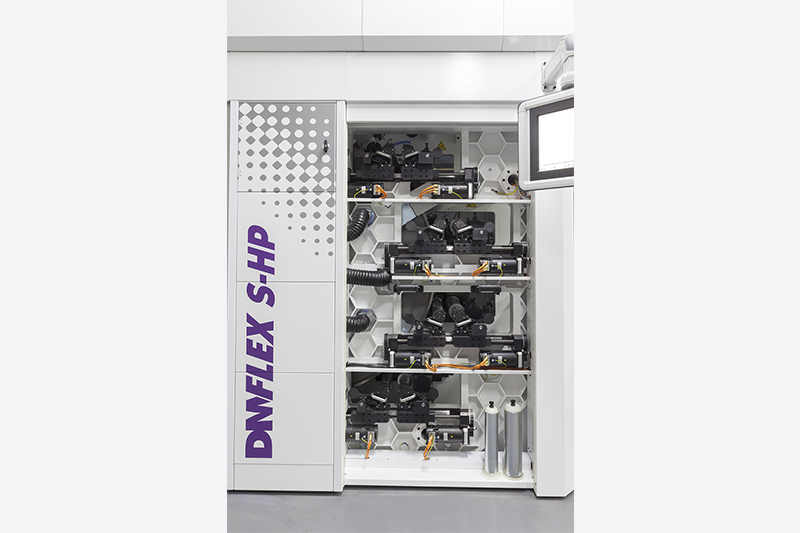

  • Automatic, motorized positioning of printing units
  • SMART REG
    • Fast and precise register alignment in one step
    • By touching the image on the monitor while the machine is stopped
    • No need for special targets or marks on the casings
  • Open chamber ink system
    • High-performance lightweight chamber doctor blade
    • Uniform blade clamping
    • Fast doctor blade change, without screwdriver
    • Min quantity of ink for 400 mm printing width: 1 litre
  • Micro-porous bars for web turning

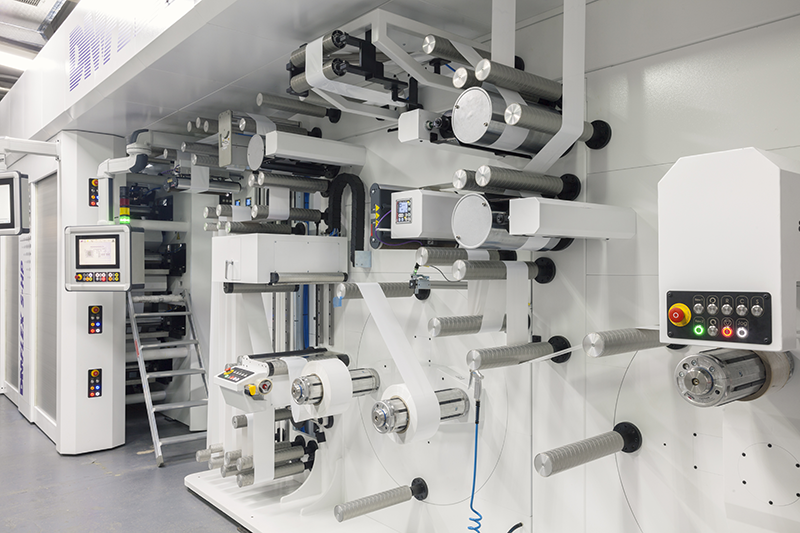

  • Automatic reel exchange on unwinder: “butt splicer”
    • There is no need for moving back printing units during the splice
    • There is no damage of cliché with splice during full printing speed
    • Servo motor controlling of accumulator movement during changing the reels
  • Automatic reel exchange on winder
Machine Specification
Number of printing units 6 or 8
Mechanical machine speed 200 m/min
Reel diameter on unwinder max 600 mm
Reel weight on unwinder/winder max 60 kg
Reel diameter on winder max 600 mm
Tension range in the machine 10 – 150 N
Tension range on winder 4 – 50 N
Printing
Printing possibilities 6+6 or 8+8
Edge to edge printing ✓
Printing casings caliber (both side printing) min 20 mm
Printing casings caliber (both side printing) max 120 mm
Printing repeat length min 300 mm
Printing repeat length max 650 mm
Step of repeat length 0.1 mm
Plate thickness 1.14 mm
Tape thickness 0.38 or 0.5 mm
Types of Sausage Casings
PA ✓
Fibrous ✓
Collagen ✓
Cellulose ✓
Type of Inks
UV cationic ink ✓
UV LED ink ✓
Solvent based 2K ink ✓
Water based 2K ink ✓
Dimensions
Length 9.5 m
Width 4.0 m
Height 3.5 m
Weight 24 t
