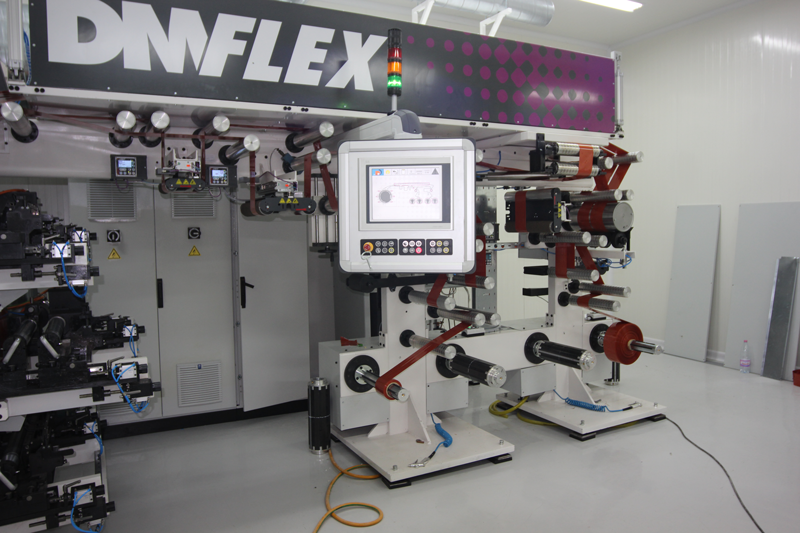

DM-CIPress-E

DM-CIPress-E is a cost-effective flexographic printing machine designed for printing sausage casings with a central impression cylinder and gearless technology. This machine is ideal for companies seeking excellent printing printing results at lower costs.

  • Cost Effective Printing Press for Sausage Casings
  • Central Impression Cylinder
  • Gearless Technology
  • Srapper for edge to edge printing
  • 5 sections of tension control with servo motors
  • Printing and anilox sleeves
  • Torque servo motor on the CI cylinder. There is no belt and gearbox
  • Open chamber ink system
    • High-performance lightweight chamber doctor blade
    • Uniform blade clamping
    • Fast doctor blade change, without screwdriver
    • Min quantity of ink for 400 mm printing width: 1 litre
  • Micro-porous bars for web turning

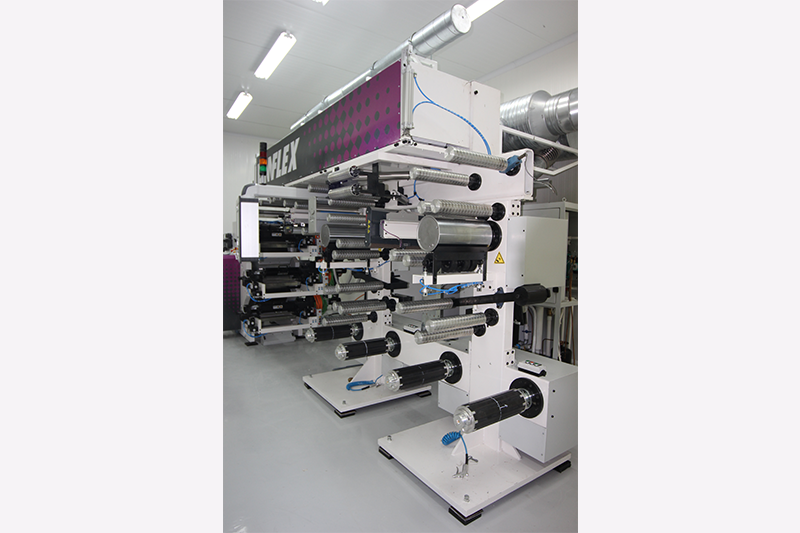

  • Rotating arm for semi-automatic reel exchange on unwinder and winder
Machine Specification
Number of printing units 6
Mechanical machine speed 120 m/min
Reel diameter on unwinder max 600 mm
Reel weight on unwinder/winder max 60 kg
Reel diameter on unwinder/winder max 600 mm
Tension range in the machine 10 – 150 N
Tension range on winder 4 – 50 N
Printing
Printing possibilities 6+6
Edge to edge printing ✓
Printing casings caliber (both side printing) min 20 mm
Printing casings caliber (both side printing) max 120 mm
Printing repeat length min 300 mm
Printing repeat length max 500 mm
Step of repeat length 0.1 mm
Plate thickness 1.14 mm
Tape thickness 0.38 or 0.5 mm
Types of Sausage Casings
PA ✓
Fibrous ✓
Collagen ✓
Cellulose ✓
Type of Inks
UV cationic ink ✓
UV LED ink ✓
Solvent based 2K ink ✓
Water based 2K ink ✓
Dimensions
Length 7.5 m
Width 3.5 m
Height 3.0 m
Weight 12 t
